The working principle of bucket wheel dredger is similar to that of a cutter suction dredger, but they are used for different purposes. Bucket-wheel dredgers are most often used for mining minerals in marine areas rather than dredging soft soil.

Bucket wheel head is perfectly suitable for the hard soil that it will be applied in.The cutter system is very positive and cutting production has increased significantly.

HP bucket wheel dredger dopts a hydraulic and centralized PLC control system, consists of three pontoons dismantled type cabin, equipped with anchor boom, trolly, and other devices. Auto lubrication device for cutter ensures long life, independent positioning metal floating ring seal.

Bucket wheel dredger is a new type of hydraulic dredger developed from conventional cutter suction dredger. This dredging equipment is a combination of land digging bucket wheel and cutter suction dredger, which further improves and improves the cutting and digging capacity of the dredger, improves the productivity, and relatively reduces the energy consumption of digging and winch traverse.

Bucket Wheel Dredger uses a rotary cutter head to better excavating harder materials, has better digging characteristics at the bottom of the cut, and traps heavy minerals. Bucket Wheel Dredger is suitable for offshore maintenance desilting and hydraulic reclamation, also used for A-class waterways, B-class waterways, large ports, reservoirs, lakes.

The design follows China ZC-class rules and shipyard standards. The whole ship adopts a hydraulic and centralized PLC control system, consists of three pontoons dismantled type cabin, equipped with anchor boom, trolly, and other devices. Auto lubrication device for cutter ensures long life, independent positioning metal floating ring seal.

The whole dredger is dismountable, which can transport by railway, road transportation and sea shipment.

Pump water flow capacity 2000m3/h--5000m3/h, daily dry sand capacity 8000-10000m3.

FAQ

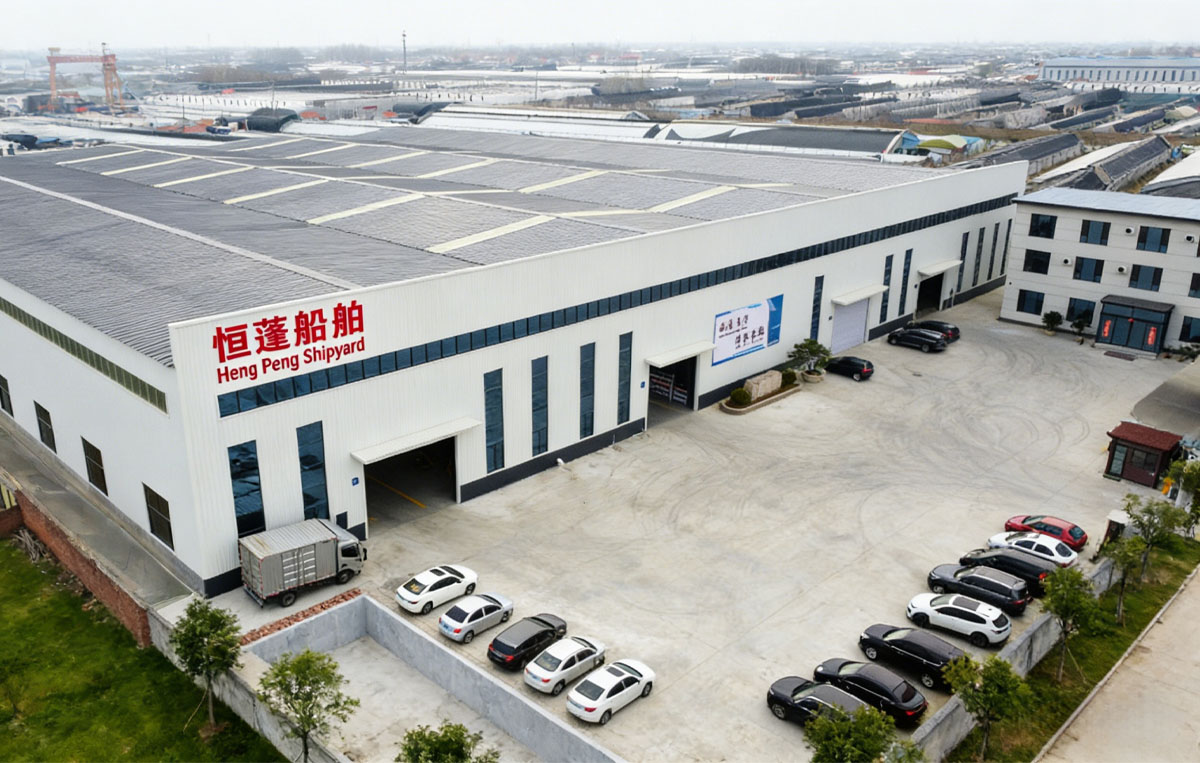

1.Why HP is your Best Trustworthy Dredger Manufacturer? HP company in total covers an area of nearly 100,000 square meters. We have in total of 6 large manufacturing workshops and over 100 dredger designers, engineers, and manufacturers to enable large production and efficient productivity. Also, our in-house Product Testing Pool is 1200 Square Meters to ensure zero defects before shipping out of the factory. For the past 30 years, we have in total manufactured and supplied over ... More
