· Brand:  HengPeng

· Product origin:  China

· Delivery time:  2023 year

· Production Capacity: 160 Set

· Transport:  in Container Shipment.

· Dredging materials:  Sand

· Suitable projects: Suitable for construction in closed sea areas, inland rivers and lakes.

Features ：

1.The whole Jet Suction Dredger can be disassembled and transported by truck/roal/rail/sea，which is suitable for construction in closed seas and inland rivers and lakes.
2.Four ballast tanks are located at the front and rear ends of the side appendage.
3.Large and bright operating room with air-conditioning and adjustable seats, comfartable working environment.
4.One captain operates all monitoring instruments, light control buttons, and action command buttons.
5.Optional: installation of walking propellers, easy to move.
6.Suitable for tasks such as dredging urban rivers and reservoirs, it can easily access narrow waterways or wetlands (and low bridges). Electric-powered, it has low energy consumption and more economical operating costs. Dredging is thorough, efficient, and easy to operate. If you need this model, you can contact us.

PRODUCT INTRODUCTION

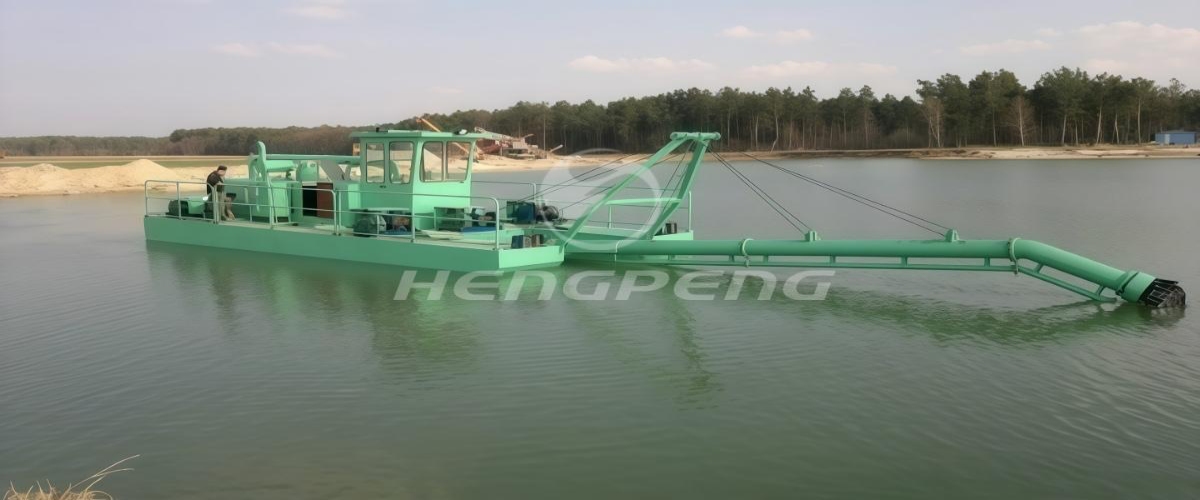

500m3/h Dismountable JSD2006 for River Sand Dredging and Sea Sand Dredging Project

The HP-JSD2006 Jet Suction Dredger of steel construction, the non self-propelled, dismountable type, is able to berth and Pumping sand at any waters both in the coastal area and inland rivers, with similar conditions to that in navigation area "A" or below the "A"-line specified in code for inland river steel engineering ship manufacture of P. R. China.

The hull is of all welded, steel construction to give the dredger the necessary strength required for dredging operations. The side pontoons are connected to the main pontoon by means of bolts. The hull steel plate used is CCS (shipbuilding steel plate ).

Main Parameter information：

l Flow capacity: 500m3/h

l Discharge distance: 350m（Customized ptional）

l Max dredging depth: 14.5m （Customized optional）

l Discharge Diameter: 200 mm

l Diesel Engine : 240 kw/Weichai

l Customized Design is Available

SPECIFICATION

Main Advantage:

* High Quality: Manufactured using CCS marine steel and advanced technology.

* Reliable Performance: Equipped with a new highly effective drive system and reliable electrical components.

* Customization: Ability to tailor the dredger to specific needs and working conditions.

* Fast Delivery: Standard designs, allowing short delivery times

* Comprehensive Support: Lifetime technical support, maintenance, and training services.

Packaging and Shipping:

* Small sand pumping ships are transported in containers. The sand pumping ships are split and each component can be hoisted into a container in the warehouse. After all the goods are received at the job site, our engineers will go to the working site for assembly, testing and training.

* The large sand pumping ship will be transported by sea via bulk carrier. After all the goods are received at the operation site, our engineers will go to the operation site for assembly, testing and training.

*The 900m3/h dredger is a small type dredger, which could been transported by container sea shipment. After all the goods are received at the operation site, our engineers will go to the operation site for assembly, testing and training.

Heng Peng Jet Suction Dredger Technical Specifications:

About Heng Peng Shipyard - QingZhou HengPeng Dredging Equipment Co.,Ltd:

* 30 years' dredger manufacture workmanship

* Fortune 500 Company chosen supplier

* Large production, ISO 9001 2015 quality system

* 4 manufacture shops, R&D center, testing pool

* Presences in 30 countries

* 10 series of dredging equipment

* Dredge building certificate & patents

* Enterprise credit rating AAA

About Heng Peng Shipyard Dredger :

*A wide range of use applications

*High efficiency, large output, far pump distance, low fuel consumption

*Full hydraulic control with Rexroth, Vickers

*Siemens PLC operation with the operation convenience

*Engine choice from Weicchai, Cummins, Caterpillar and more.

*Australia Technology Dredge Pump available

*The modular design enables fast assembly with Heng Peng shipyard seniors engineers

*Dredger components available in factories to allow short delivery times

*Control the working process of dredging and pumping, delivering dredged materials. lower cost;

*Follow manufacture guideline: CCS-ZC standard

*CE certificates acquired to prove high quality

*Western Dredge brand parts, easy to find globally

*Choose reliable Chinese brand parts to lower costs

*Gain access to our sales team, design team, manufacture team 24/7

*Lifetime Technical Assistance

*Optional equipment is available such as Spud carriage, anchor boom.

Heng Peng Shipyard Services:

*Free dredger consultation and free product drawings

*Customze dredgers based on the client's actual dredging needs

*On-site visits and factory visit services provided by Heng Peng Shipyard

*Arrange 2-3 senior engineer and technicians to enter the working site within 36 hours

*Free professional assembly, training and operating to make sure dredger operates smoothly

*1-year warranty and Lifetime technical assistance

*Sign after-sales service agreement with Heng Peng Shipyard clients

*Offer spare parts at a discounted price

*On-site parts available

*Heng Peng Shipyard require responsible Sales team, design team, manufacture team available 24/7 to best serve clients.

HengPeng Shipyard is a pioneering enterprise in the design, construction, and engineering of dredging industries.

HengPeng Shipyard offers an unparalleled range of both standardized and tailor-made dredging, working, and support vessels. HengPeng takes pride in continually upgrading our solutions by collaborating with premier domestic and international institutes, incorporating cutting-edge technologies from Germany, Holland, Australia, and Japan. HengPeng's unmatched products have made a significant impact globally in countries such as UAE, Saudi Arabia, Qatar, Egypt, Spain, Poland, Maldives, Bangladesh, Malaysia, Indonesia, Philippines, and Nigeria, earning high praise and appreciation from our esteemed customers. ---Respond to rapid delivery in various regions.

Welcome to HengPeng Shipyard ! we are looking forward to providing free consultation for your dredging projects, customize the dredge just for you, manufacture, delivery, assembly, train, operate, and provide lifetime technical assistance to achieve your dredging goal !

FAQ

1.Why HP is your Best Trustworthy Dredger Manufacturer? HP company in total covers an area of nearly 100,000 square meters. We have in total of 6 large manufacturing workshops and over 100 dredger designers, engineers, and manufacturers to enable large production and efficient productivity. Also, our in-house Product Testing Pool is 1200 Square Meters to ensure zero defects before shipping out of the factory. For the past 30 years, we have in total manufactured and supplied over ... More
