HP-SW700 STOCK AMPHIBIOUS MULTIPURPOSE DREDGER |
|||
|
Capacity |
Dredging Depth |
Main Engine |
Discharg Distance |
|
750-850m3/h |
6.5m (optional) |
Cummins 264kw |
1500m |
PRODUCT INTRODUCTION
The HP-CE300 Amphibious Multipurpose Dredger is made to work on the soft foundation by Heng Peng Shipyard Dredging Equipment which has absorbed advanced dredging technology and worked in conjunction with China Nanjing Conservancy Science Research Institute.The dredger design has been protected by patent.
ONE MACHINE,ALLAPPLICATION
Clay Emperor amphibious multipurpose machine excels alone in the tasks that are conventionally handled with multiple machines. With its versatile selection of quickly changeable attachments, the clay emperor can do shallow water work from dry ground up to the depth of 6.5 meters.
RELIABLE AND EFFICIENT
This machine is known for its versatile working ability,very suitable for shallow water desilting work,can access difficult worksite and can self-walk in and out of the pond with more than 5 different work applications.
Right now the machine is operating in 10 different counties including China, Indonesia, the Philippines,Columbia and Kazakhstan.
TRANSPORTABLE AND DELIVERABLE FROM STOCK
The whole machine can be transported with standard truck trailer to the shipping port for bulk sea shipping, or packing in 1 flat rack containers and 1x40HQ containers for oversea shipping.
Transport with trailer, no set up time, save time and cost. Independently walk off the truck trailer, no crane needed. Independently walk in and out the water, no crane needed. Short delivery time: 7 days for in-stock units and 80 days for custom-built ones.
SERVICE AND SUPPORT
Heng Peng Shipyard Dredger can provide a complete package of spare parts, maintenance support, equipment training programmes, dredging advisory services and dredge operators for hands-on instruction and commissioning.
GENERAL ARRANGEMENT

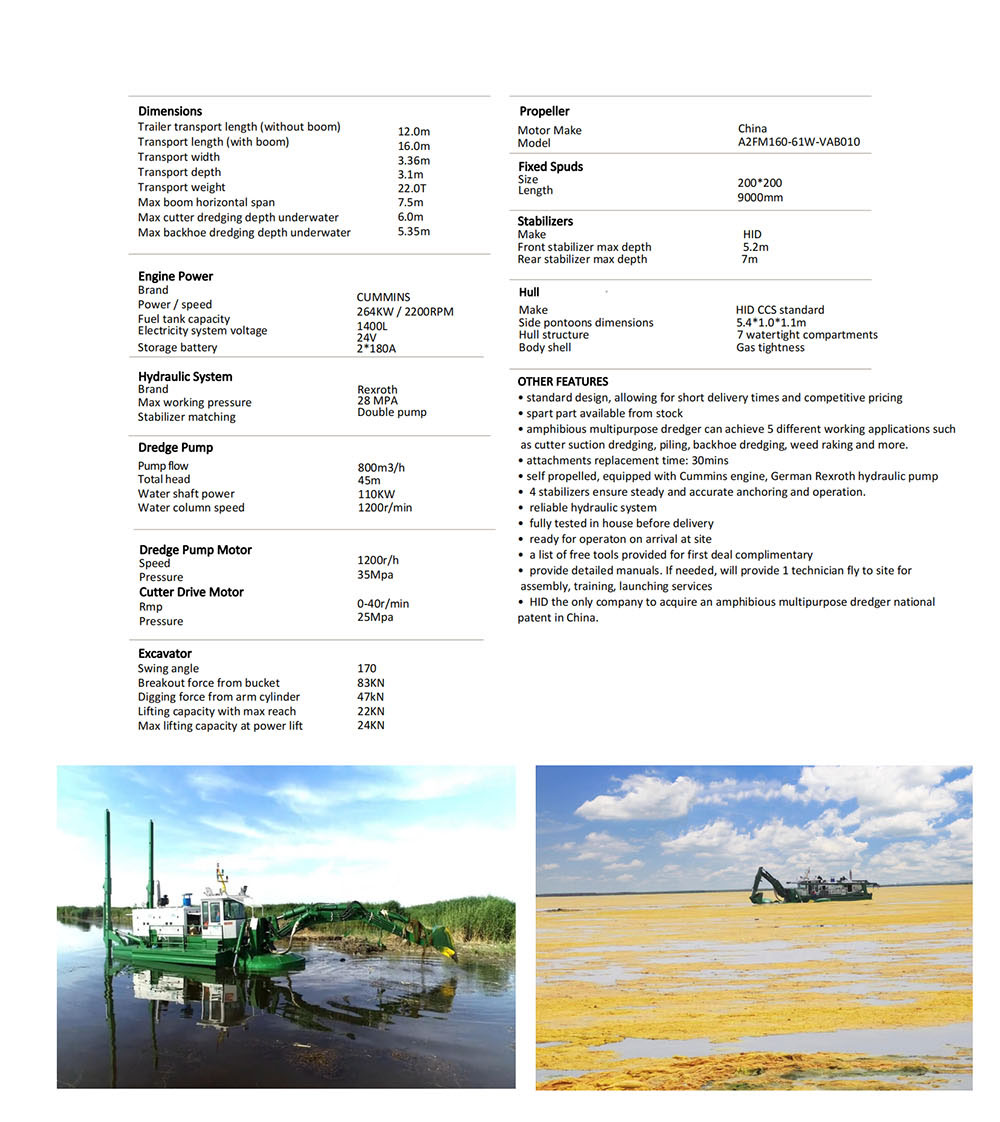

SPECIFICATION
|
Dimensions |
|
|
Trailer transport length(without boom) |
12.0m |
|
Transport length(with boom) |
16.0m |
|
Transport width |
3.36m |
|
Transport depth |
3.1m |
|
Transport weight |
22.0T |
|
Max boom horizontal span |
7.5m |
|
Max cutter dredging depth underwater |
6.0m |
|
Max backhoe dredging depth underwater |
5.35m |
|
Engine Power |
|
|
Brand |
CUMMINS |
|
Power/speed Fuel tank capacity Electricity system voltage |
264KW/2200RPM 1400L 24V |
|
Storage battery |
2*180A |
|
Hydraulic System |
|
|
Brand Max working pressure |
Rexroth 28 MPA |
|
Stabilizer matching |
Double pump |
|
Dredge Pump |
|
|
Pump flow |
800m3/h |
|
Total head |
45m |
|
Water shaft power |
110KW |
|
Water column speed |
1200r/min |
|
Dredge Pump Motor |
|
|
Speed |
1200r/h |
|
Pressure |
35Mpa |
|
Cutter Drive Motor |
|
|
Rmp Pressure |
0-40r/min 25Mpa |
|
Propeller |
|
|
Motor Make |
China |
|
Model |
A2FM160-61W-VAB010 |
|
Fixed Spuds |
|
|
Size |
200*200 |
|
Length |
9000mm |
|
Stabilizers |
|
|
Make |
Heng Peng Shipyard |
|
Front stabilizer max depth Rear stabilizer |
5.2m |
|
max depth |
7m |
|
Hull |
|
|
Make |
Heng Peng Shipyard CCS standard |
|
Side |
5.4*1.0*1.1m |
|
Hull |
7watertight compartments |
|
Body |
Gas tightness |
OTHER FEATURES
·standard design,allowing for short delivery times and competitive pricing
·spare parts available from stock
·amphibious multipurpose dredger can perform 5 different working applications such as cutter suction dredging, pipeline, backhoe dredging, weed raking and more.
·attachments replacement time:30 mins
·self propelled, equipped with Cummins engine, German Rexroth hydraulic pump 4 stabilizers ensure steady and accurate anchoring and operation.
·reliable hydraulic system
·fully tested in house before delivery
·ready for operation on arrival at site
·a list of free tools provided for first deal complimentary
·provide detailed manuals.If needed, will provide 1 technician to fly to site for assembly, training, launching services
·Heng Peng Shipyard the only company to acquire an amphibious multipurpose dredger national patent in China.
