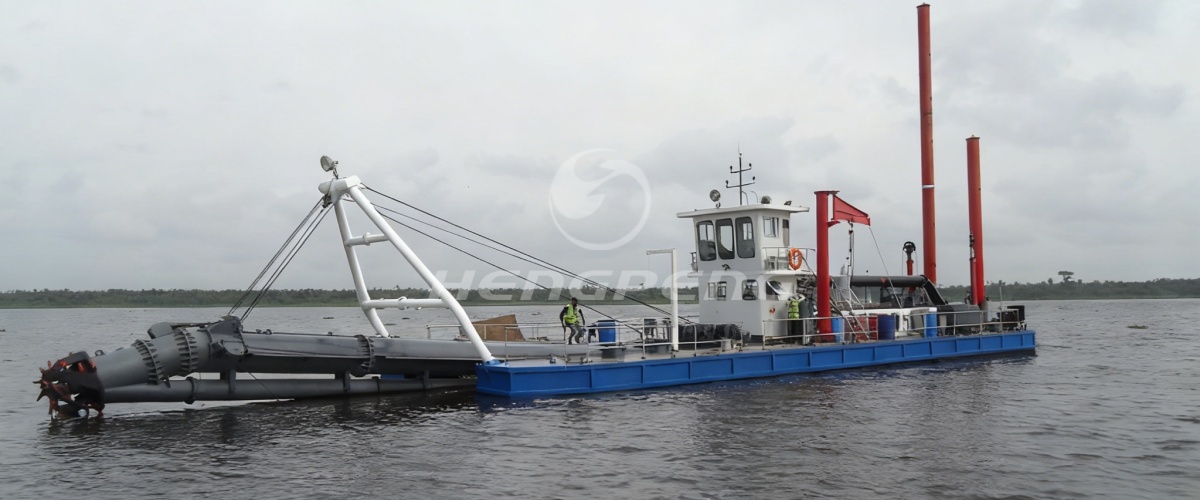

STOCK CUTTER SUCTION DREDGER HP-CSD4016 |
|||
|
Capacity |
Dredging Depth |
Main Engine |
Discharge Pipe Dia. |
|
2200m3/h |
14m (optional) |
Weichai 735kw |
400mm |
PRODUCT INTRODUCTION
The Heng Peng Shipyard Dredger HP-CSD4016 is equipped with state-of-the-arttechnology, including the following key features:
·A dredge pump with a large ball passage and excellent suction performance
·Environmentally friendly solutions, such as LED lighting
·White iron-wear parts for the dredge pump
·First class ergonomics and diagnostics
·Safe operation using PLC controls
·Easy to operate for a single person from the operator's seat
RELIABLE AND EFFICIENT
The Heng Peng Shipyard Dredger is well known for its robust construction, reliable operation and excellent performance. To date, Heng Peng Shipyard Dredger has supplied the dredgers to more than 48 countries on the world.
Heng Peng Shipyard Dredger can be dismantled for transport via road, rail or sea. A wide range of optional equipment is available, as well as complementary auxiliary equipment, such as work boats and discharge pipelines. These vessels are mostly delivered from stock.
SERVICE AND SUPPORT
Heng Peng Shipyard can provide a complete package of spare parts, maintenance support, equipment training programmes, dredging advisory services and dredge operators for hands-on instruction and commissioning.

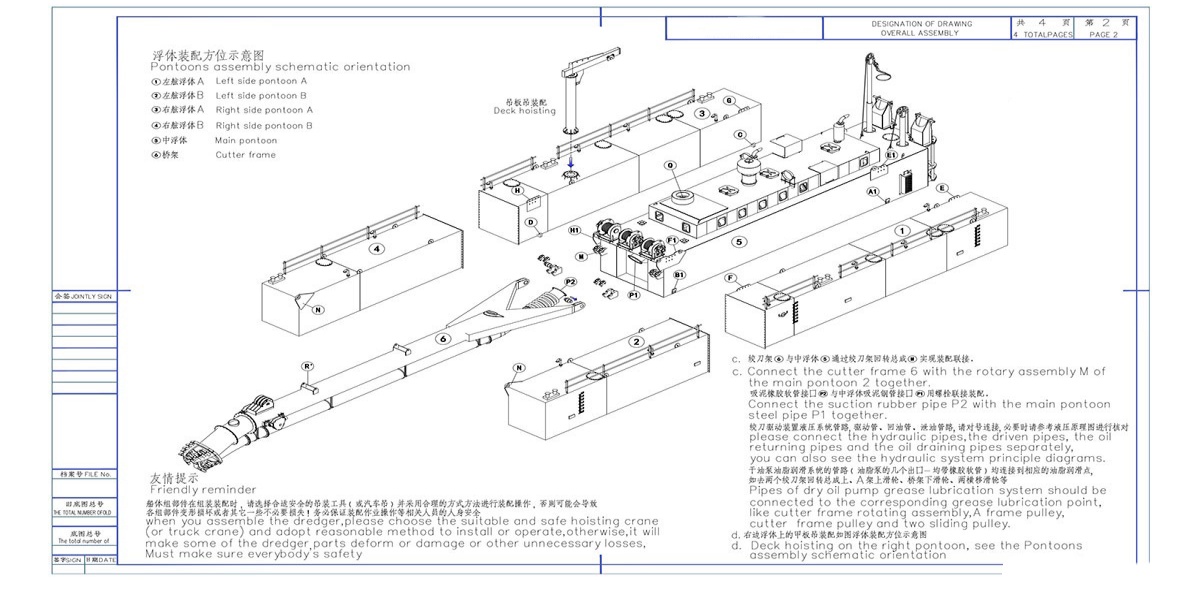

GENERAL ARRANGEMENT

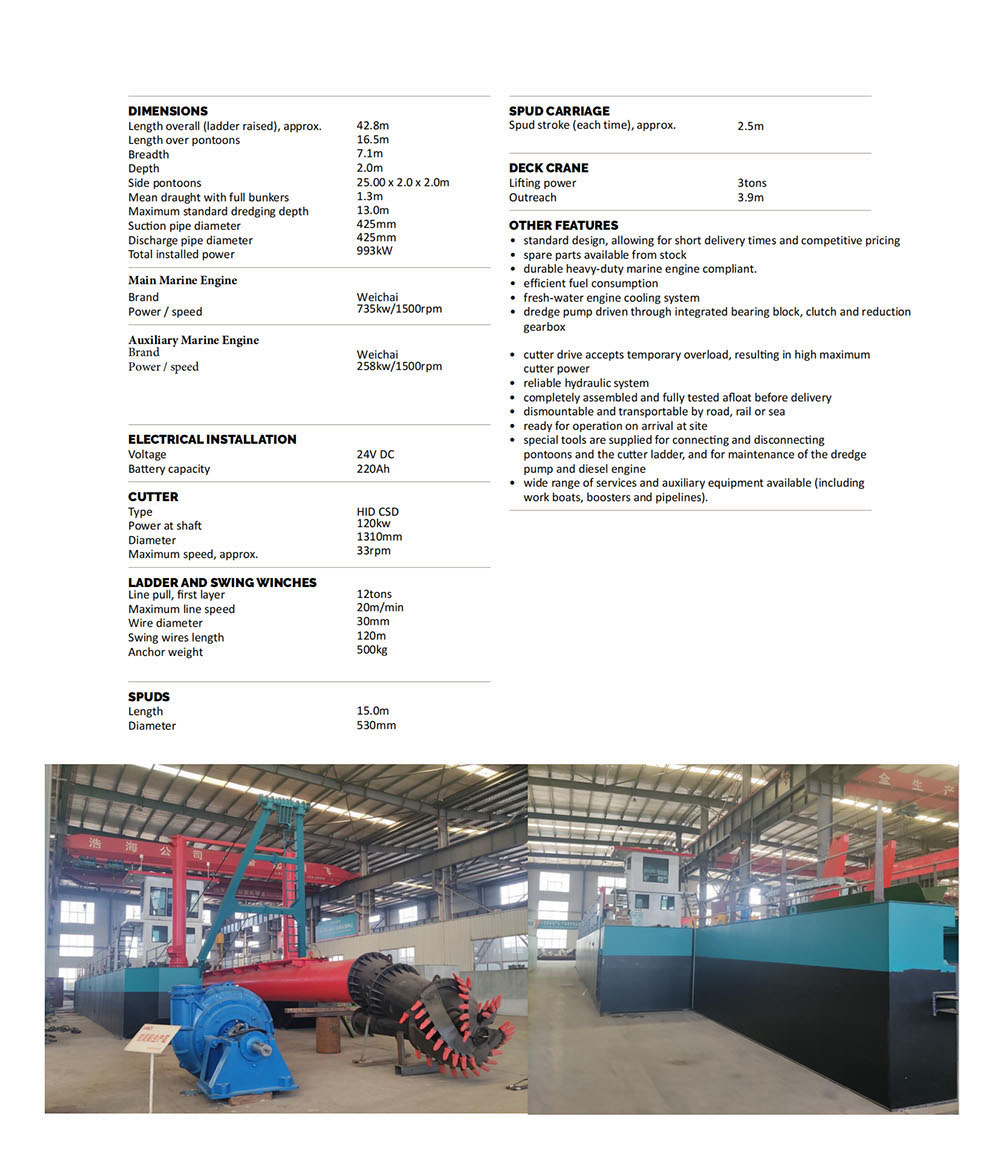

SPECIFICATION
|
DIMENSIONS |
HP-CSD4016 Dredger |
|
Length overall (with spud carriage) |
42.8m |
|
Length of hull |
25m |
|
Breadth |
7.1m |
|
Depth |
2.0m |
|
Side pontoons |
25.00×2.0×2.0m |
|
Mean draught with full bunkers |
1.3m |
|
Maximum standard dredging depth |
14.0m |
|
Suction pipe diameter |
400mm |
|
Discharge pipe diameter |
400mm |
|
Total installed power |
993kW |
|
Main Marine Engine |
|
|
Brand |
Weichai |
|
Power/speed |
735kw/1500rpm |
|
Auxiliary Marine Engine |
|
|
Brand |
Weichai |
|
Power/speed |
258KW/1500rpm |
|
ELECTRICAL INSTALLATION |
|
|
Voltage |
24V DC |
|
Battery capacity |
220Ah |
|
CUTTER |
|
|
Type |
Heng Peng CSD |
|
Power at shaft |
120kw |
|
Diameter |
1310mm |
|
Maximum speed, approx. |
33rpm |
|
LADDER AND SWING WINCHES |
|
|
Line pull(first layer) |
12Tons |
|
Maximum line speed |
20m/min |
|
Wire diameter |
30mm |
|
Swing wires length |
120m |
|
Anchor weight |
500kg |
|
SPUDS |
|
|
Length |
15.0m |
|
Diameter |
530mm |
|
SPUD CARRIAGE |
|
|
Spud stroke(each time),approx |
2.5m |
|
HYDRAULIC CYLINDER |
|
|
Cylinder Stroke Cylinder |
2m |
|
Diameter |
140mm |
|
Deck Crane |
3tons |
|
Outreach |
3.9m |
OTHER FEATURES
·New dredger is produced under the International quality ISO 9001:2015, with strict rules and manufacture guidelines to ensure quality and performance.
·One-man operation dredger by Hydraulic PLC System, with Automated operating platform, to achieve easy operation and efficiency.
·Standard design, allowing for short delivery times and competitive pricing
·Spare parts available from stock.
·Durable heavy-duty marine engine compliant.
·Efficient fuel consumption,fresh-water engine cooling system.
·Dredge pump driven through integrated bearing block, clutch and reduction gearbox.
·Cutter drive accepts temporary overload, resulting in high maximum cutter power, reliable hydraulic system.
·Completely assembled and fully tested afloat before delivery.
·Dismountable and transportable by road, rail or sea, ready for operation on arrival at site.
·Special tools are supplied for connecting and disconnecting pontoons and the cutter ladder, and for maintenance of the dredge pump and diesel engine.·wide range of services and auxiliary equipment available(including work boats, boosters and pipelines).
