· Brand:  HengPeng

· Product origin:  China

· Delivery time:  2023 year

· Production Capacity: 160 Set

· Transport:  in Container Shipment.

· Dredging materials:  Sand

· Suitable projects: Suitable for construction in closed sea areas, inland Lakes, Rivers and Channels Projects.

Features ：

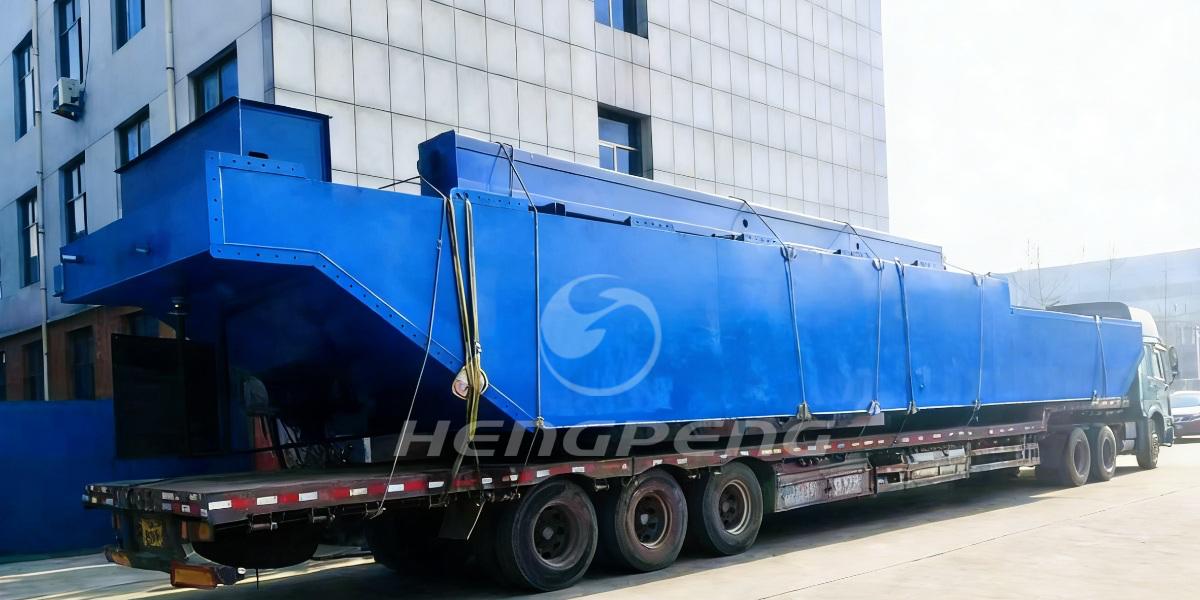

1.The whole Excavator Floating Platform Barge can be disassembled and transported by truck(rail/sea/road).

2.Four ballast tanks are located at the front and rear ends of the side appendage.

3.Large and bright operating room with air-conditioning and adjustable seats, comfartable working environment.

4.One captain operates all monitoring instruments, light control buttons, and action command buttons.

5.The position of 3 or 4 positioning spuds can be effectively selected, and better for installation, which makes the hull more stable after installation.

6.Optional: Winchs, Cranes, Propellers. installation of walking propellers, easy to move.

PRODUCT INTRODUCTION

60Ton Dismountable HP-PT350 Excavator Transport Floating Platform Barge With Two Propeller for Sand and Mud Dredging Projects

HengPeng Floating Platform Barge (Water Floating Working Platform Pontoon) , source entity manufacturer. HengPeng shipyard stands out as a professional manufacture in China, specializing the production od modular and container pontoons, along with sectional workboats, logistc transport Platform, crane pontoon and jack-ups. These modular pontoons are widely employed acros numerous industries, including dredging, civil construction, and oil and gas.

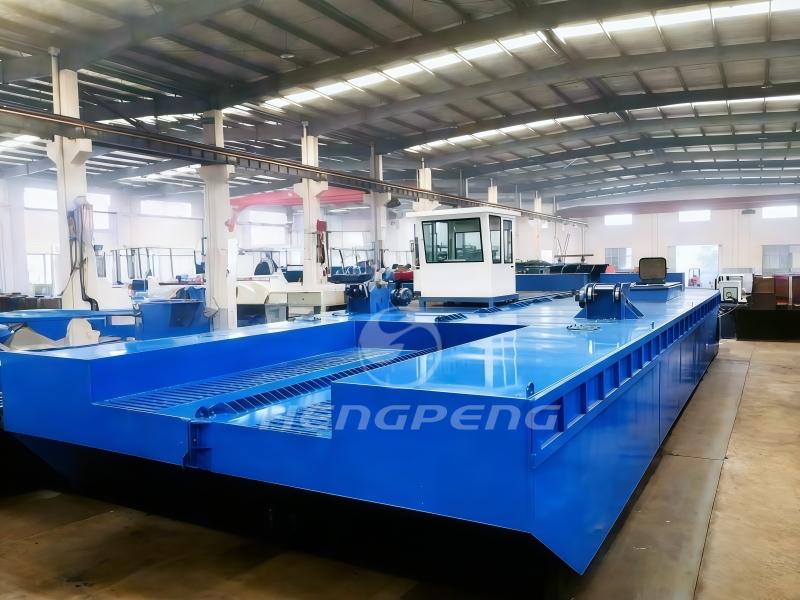

HengPeng Excavator Platform Pontoon is self-propelled or non self-propelled, portable modular Floating Platform. Hull can be dismantled and re-assemble easily with box structure, equipped with spud devices, deck crane and so on. The purpose of this type pontoon is frequently utilized to support and handle a excavator working on deck for operationg in various tasks within Chaotic river channels, complex waters; dredging, highly adaptable. Widely used in sand-excavating, river dredging, pile driving, desilting, reclamation for channels and land, etc.

The compact design allows rapid deployment and mobilization. It is very easy to tow and maneuver in a narrow area.

Not only that, the modular design enabled contianers shipping whicn saved clients a great deal of shipping cost.

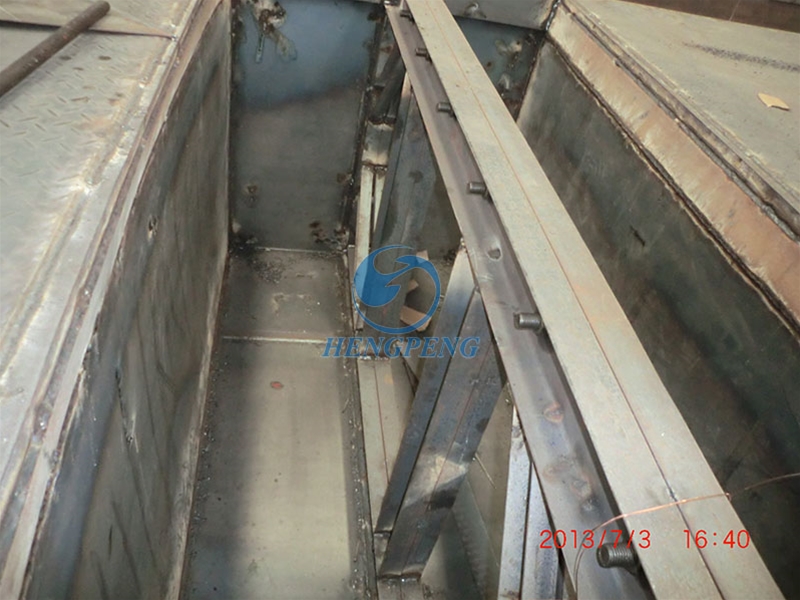

In order to support heavy excavator, the deck plates were constructed with CCSB marine plates, safely support excavator working on the deck. The hull is of all welded, steel construction to give the dredger the necessary strength required for dredging operations, the hull pontoons are connected by means of bolts, and also the hull steel plate used is CCS (shipbuilding steel plate ).

Main Parameter information：

l Total Length: 16m

l Pontoon Depth: 1.8m

l Breadth: 8.8m

l Spuds Number:  4pcs

l Spud Length:  9000mm

l Spud Diameters:  350mm

l Matched excavator:  35Ton

l Deck Load Capacity:  60Ton

l Customized Design is Available

GENERAL ARRANGEMENT

SPECIFICATION

Hengpeng Excavator Floating Working Platform Pontoon, Operation Mode:

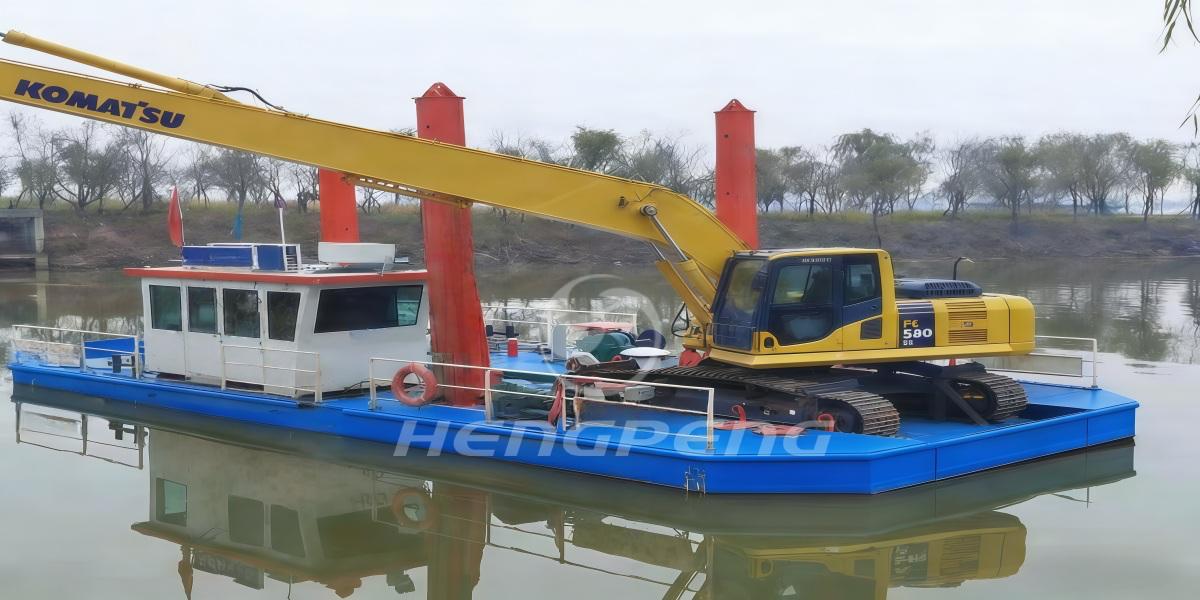

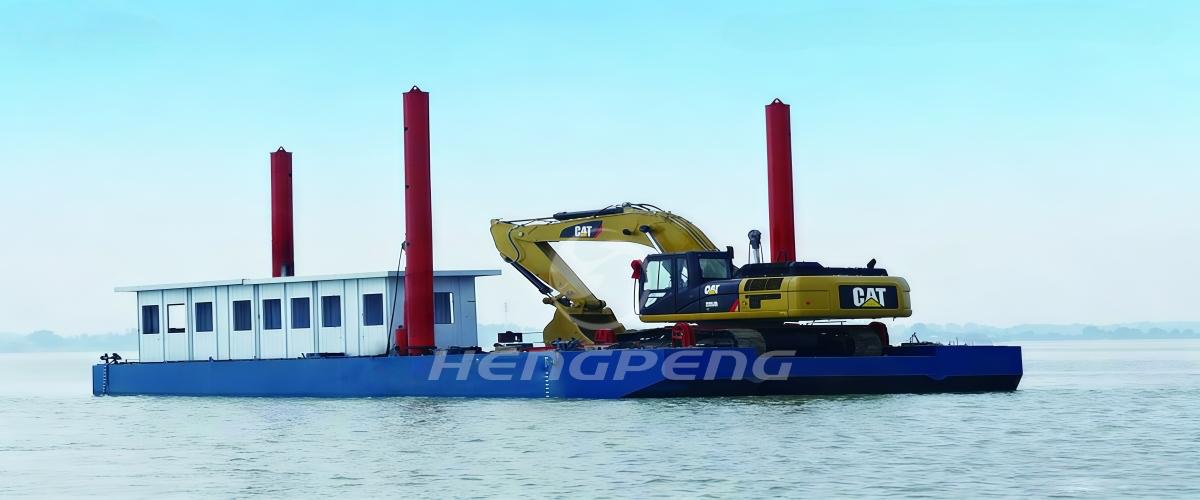

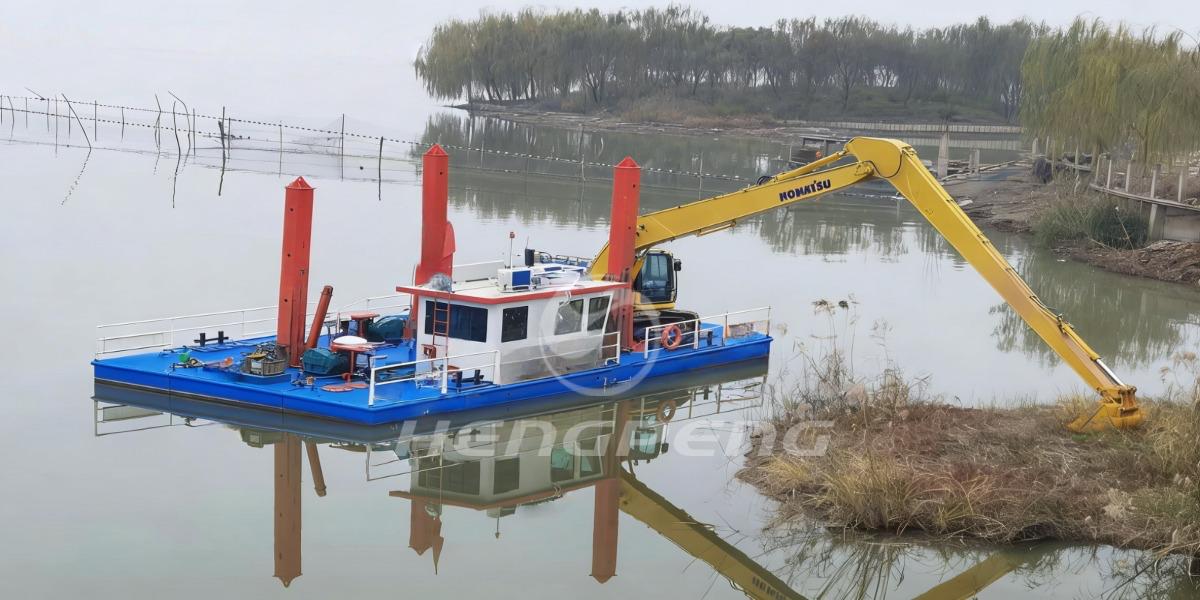

The excavator transportation carrier is used to directly loaded the excavator on the deck of carrier and excavate with an extended arm to backhoe dredging. After arriving at the workplace, the SPUDS will automatically fall, and the excavator can work 180 degrees on any fan-shaped surface on the platform, with flexible movement and high structural strength.

Main Advantage:

* High Quality: Manufactured using CCS marine steel and advanced technology.

* Reliable Performance: Equipped with a new highly effective drive system and reliable electrical components.

* Customization: Ability to tailor the dredger to specific needs and working conditions.

* Fast Delivery: Standard designs, allowing short delivery times

* Comprehensive Support: Lifetime technical support, maintenance, and training services. comprehensive professional assembly and operational support are provide to ensure smooth equipment operation.

Packaging and Shipping:

 *The HP-PT350 Excavator Transport Floating Platform Barge is designed modular pontoon type, which could been transported by container sea shipment. After all the goods are received at the operation site, our engineers will go to the operation site for assembly, testing and training.

About Heng Peng Shipyard - QingZhou HengPeng Dredging Equipment Co.,Ltd:

* 30 years' dredger manufacture workmanship

* Fortune 500 Company chosen supplier

* Large production, ISO 9001 2015 quality system

* 4 manufacture shops, R&D center, testing pool

* Presences in 30 countries

* 10 series of dredging equipment

* Dredge building certificate & patents

* Enterprise credit rating AAA

About Heng Peng Shipyard Dredger :

*A wide range of use applications

*High efficiency, large output, far pump distance, low fuel consumption

*Full hydraulic control with Rexroth, Vickers

*Siemens PLC operation with the operation convenience

*Engine choice from Weicchai, Cummins, Caterpillar and more.

*Australia Technology Dredge Pump available

*The modular design enables fast assembly with Heng Peng shipyard seniors engineers

*Dredger components available in factories to allow short delivery times

*Control the working process of dredging and pumping, delivering dredged materials. lower cost;

*Follow manufacture guideline: CCS-ZC standard

*CE certificates acquired to prove high quality

*Western Dredge brand parts, easy to find globally

*Choose reliable Chinese brand parts to lower costs

*Gain access to our sales team, design team, manufacture team 24/7

*Lifetime Technical Assistance

*Optional equipment is available such as Spud carriage, anchor boom.

Heng Peng Shipyard Services:

*Free dredger consultation and free product drawings

*Customze dredgers based on the client's actual dredging needs

*On-site visits and factory visit services provided by Heng Peng Shipyard

*Arrange 2-3 senior engineer and technicians to enter the working site within 36 hours

*Free professional assembly, training and operating to make sure dredger operates smoothly

*1-year warranty and Lifetime technical assistance

*Sign after-sales service agreement with Heng Peng Shipyard clients

*Offer spare parts at a discounted price

*On-site parts available

*Heng Peng Shipyard require responsible Sales team, design team, manufacture team available 24/7 to best serve clients.

HengPeng Shipyard is a pioneering enterprise in the design, construction, and engineering of dredging industries.

HengPeng Shipyard offers an unparalleled range of both standardized and tailor-made dredging, working, and support vessels. HengPeng takes pride in continually upgrading our solutions by collaborating with premier domestic and international institutes, incorporating cutting-edge technologies from Germany, Holland, Australia and Japan. HengPeng's unmatched products have made a significant impact globally in countries such as UAE, Saudi Arabia, Qatar, Egypt, Spain, Poland, Maldives, Bangladesh, Malaysia, Indonesia, Philippines, and Nigeria, earning high praise and appreciation from our esteemed customers. ---Respond to rapid delivery in various regions.

Welcome to HengPeng Shipyard ! we are looking forward to providing free consultation for your dredging projects, customize the dredge just for you, manufacture, delivery, assembly, train, operate, and provide lifetime technical assistance to achieve your dredging goal !
