· Brand:  HengPeng

· Product origin:  China

· Delivery time:  2025 year

· Production Capacity:  100 Set

· Transport:  in Bulk

· Dredging materials:  Sand, Mud,

· Suitable projects:  Lake desilting, land reclamation, river dredging, port construction, infrastructure building and more.

Features ：

1. One-man operation. The most advanced PLC control system.

 2. New highly effective cutter/wheel drive system

 3. Reliable hydraulic system.

 4. Fresh water cooling system

 5. Completely assembled and rigorously tested before delivery, ensuring reliability.

 6. Very simple and fast assembly, afloat of onshore

 7. Standard design, allowing short delivery times

 8. Standard spare parts available from our stock

 9. Designed as standard to qualify for Coastal Waters Certificate

10. Optional equipment available: A variety of optional equipment and auxiliary equipment, such as Booster pump station,Spud carriage, Anchor Boom and Anchor Winch, Work boats /Tug Boat and discharge pipes--HDPE Pipe, Rubber Hose, Floaters, Steel Pipe, can be provided.

11. Optional certificate available: CCS(China Classification Society), BV(Bureau Veritas), ISO9001(International Quality Management Standard), ZC(Additional Certification), DNV.

Optional device:

booster pump station

spud carriage

Submersible Pump

Bucket Wheel Cutter

Anchor Boom and Anchor Winch

WorkBoat/Tug Boat

Discharge Pipeline-HDPE Pipe, Rubber Hose, Floaters, Steel Pipe

Others based on buyer's need

PRODUCT INTRODUCTION

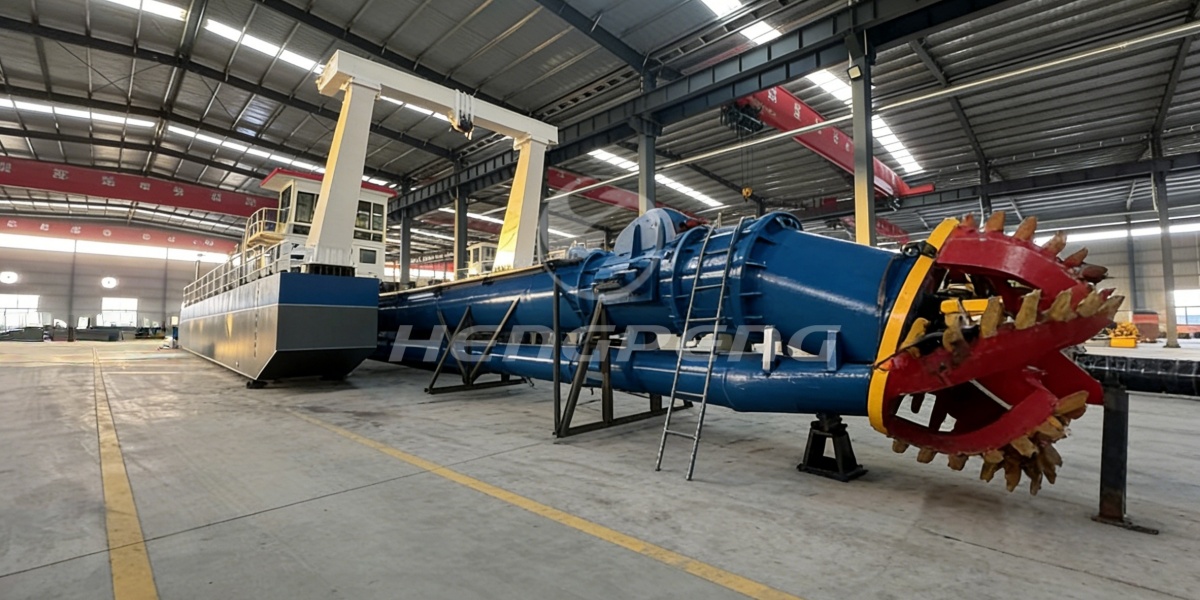

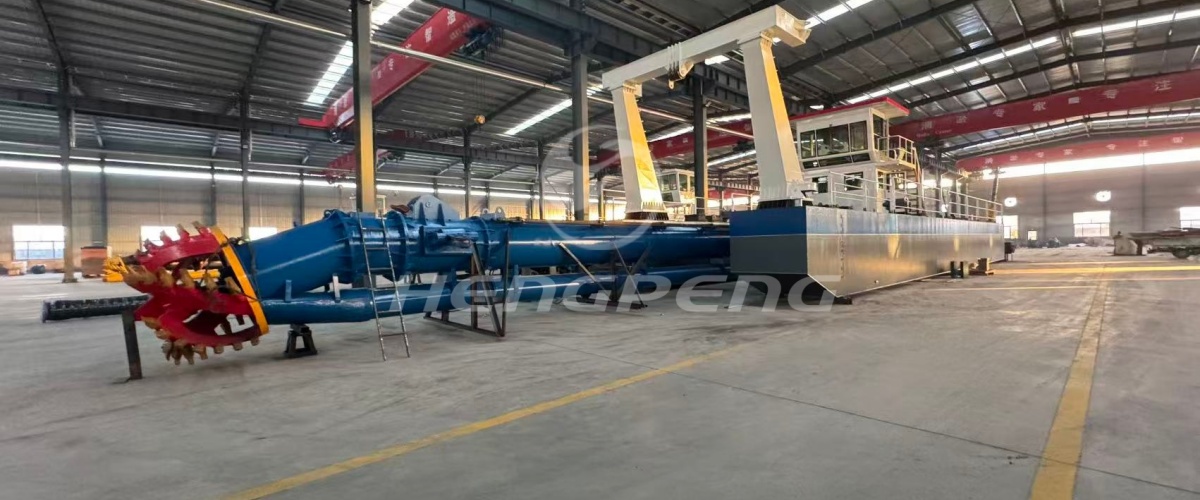

30inch 7000m3/h Dismountable Cutter suction dredger for Reclamation Canal Dredging Construction

The Cutter Suction Dredger of steel construction, the non self-propelled, dismountable type, is able to berth and dredge at any waters both in the coastal area and inland rivers, with similar conditions to that in navigation area "A" or below the "A"-line specified in code for inland river steel engineering ship manufacture of P. R. China.

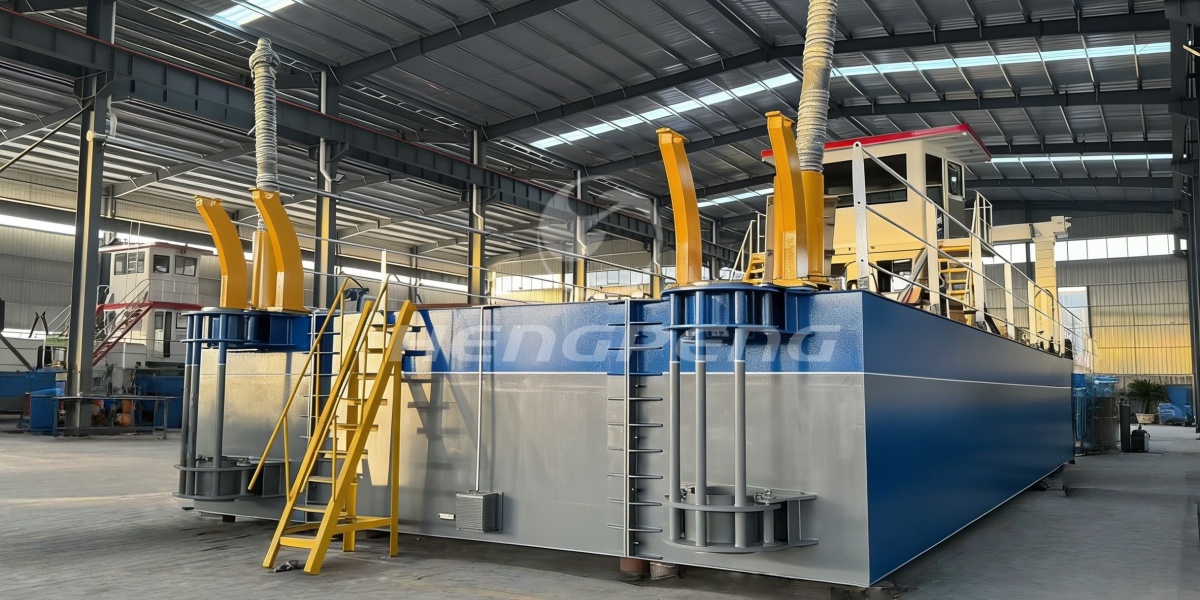

The hull consists of three pontoons, one main pontoon (engine room), two side pontoons. All parts are dimensioned to allow the dredger to be transported by road, rail or water. The dredger is equipped with a rapid connection-disconnection system for the pontoons, achieved using bolts at deck level, hull front and rear, and hooks at the bottom. Further features of the dredger are the dredger is powered by a Marine engine. The main engine is to drive the dredge pump and hydraulic pump. Hydraulic pump will in turn power other all equipments such as cutter, swing and ladder winches, and the spud rams etc.

 The hull is of all welded, steel construction to give the dredger the necessary strength required for dredging operations. The side pontoons are connected to the main pontoon by means of bolts. The hull steel plate used is CCSB (shipbuilding steel plate ).

Main Parameter information：

· Flow capacity: 7000m3/h

· Discharge distance: 3000m（customized optional）

· Max dredging depth: 14-25m

· Discharge Diameter: 600mm

· Main Diesel Engine : 1630kw ,Cummins Marine Engine

SPECIFICATION

Main Advantage:

· High Quality: Manufactured using CCS marine steel and advanced technology.

· Reliable Performance: Equipped with a new highly effective drive system and reliable electrical components.

· Customization: Ability to tailor the dredger to specific needs and working conditions.

· Fast Delivery: Standard designs, allowing short delivery times.

· Comprehensive Support: Lifetime technical support, maintenance, and training services.

Packaging & Shipping：

* Smaller size dredger will be transported by container, the dredger is split, each part can be lifted into containers in the warehouse, after the all cargoes be pick uped to working site, and our engineers will go to job site to assembly, testing and training.

* Bigger size dredger will be transported by bulk cargo ship in sea, after the all cargoes be pick uped to jobsite, and our engineers will go to job site to assembly, testing and training.

The 7000m3/h dredger is belong to bigger size dredger will be transported to ovseas port by bulk shipment, after the all cargoes be pick uped to jobsite, and our engineers will go to job site to assembly, testing and training.

HengPeng Shipyard is a pioneering enterprise in the design, construction, and engineering of dredging industries.

Hengpeng offers an unparalleled range of both standardized and tailor-made dredging, working, and support vessels. Our flagship products include Amphibious Dredgers, Cutter Suction Dredgers, Excavator Transportation Carriers, Logistic Transportation Barges, Bucket Wheel Dredgers, Jet Suction Dredgers, Chain Bucket Dredgers, Booster Pump Stations, Mining Dredgers, Iron Sand Boats, Weed Cutting Machines, Multifunction Barges, Tug Boats, Pontoons & Platforms, and Multifunctional Working & Supporting Boats.

HengPeng takes pride in continually upgrading our solutions by collaborating with premier domestic and international institutes, incorporating cutting-edge technologies from Germany, Holland, Australia, and Japan.

HengPeng's unmatched products have made a significant impact globally in countries such as UAE, Saudi Arabia, Qatar, Egypt, Spain, Poland, Maldives, Bangladesh, Malaysia, Indonesia, Philippines, and Nigeria, earning high praise and appreciation from our esteemed customers. ---Respond to rapid delivery in various regions.

Welcome to HengPeng Shipyard ! we are looking forward to providing free consultation for your dredging projects, customize the dredge just for you, manufacture, delivery, assembly, train, operate, and provide lifetime technical assistance to achieve your dredging goal !

FAQ

1.Why HP is your Best Trustworthy Dredger Manufacturer? HP company in total covers an area of nearly 100,000 square meters. We have in total of 6 large manufacturing workshops and over 100 dredger designers, engineers, and manufacturers to enable large production and efficient productivity. Also, our in-house Product Testing Pool is 1200 Square Meters to ensure zero defects before shipping out of the factory. For the past 30 years, we have in total manufactured and supplied over ... More
