· Brand:  HengPeng

· Product origin:  China

· Delivery time:  2025 year

· Production Capacity:  150 Set

· Transport:  in Bulk Shipment.

· Dredging materials:  Sand, Mud.

· Suitable projects: Lake desilting, land reclamation, river dredging, port construction, infrastructure building and more.

Features ：

1. One-man operation. The most advanced PLC control system.

 2. New highly effective cutter/wheel drive system

 3. Reliable hydraulic system.

 4. Fresh water cooling system

 5. Completely assembled and rigorously tested before delivery, ensuring reliability.

 6. Very simple and fast assembly, afloat of onshore

 7. Standard design, allowing short delivery times

 8. Standard spare parts available from our stock

 9. Designed as standard to qualify for Coastal Waters Certificate

10. Optional equipment available: A variety of optional equipment and auxiliary equipment, such as Booster pump station,Spud carriage, Anchor Boom and Anchor Winch, Work boats /Tug Boat and discharge pipes--HDPE Pipe, Rubber Hose, Floaters, Steel Pipe, can be provided.

11. Optional certificate available: Our commitment to excellence and quality assurance is underscored by our impressive range of certifications. Proudly certified by prestigious organizations such as CCS, BV, ISO9001, CE, ZC, DNV, and Patent, HengPeng Dredger Shipyard ensures that our Advanced Suction Dredger for River Dredging meets the highest international standards of safety, performance, and innovation.

PRODUCT INTRODUCTION

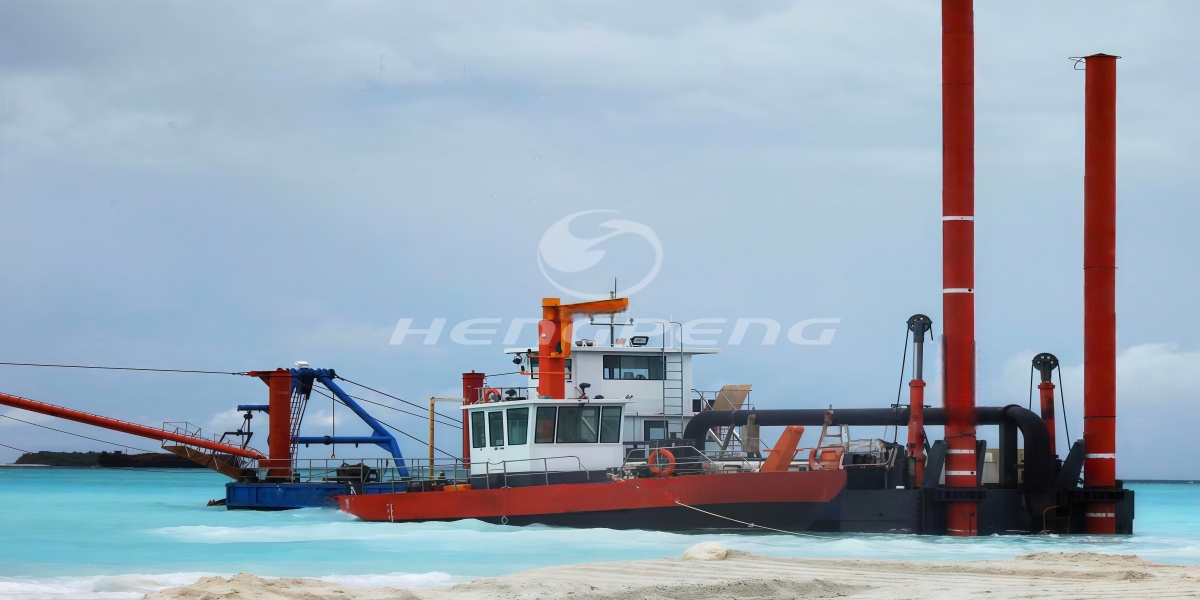

22inch 5000m3/h Dismountable CSD for River Sand Dredging and Sea Sand Dredging Project

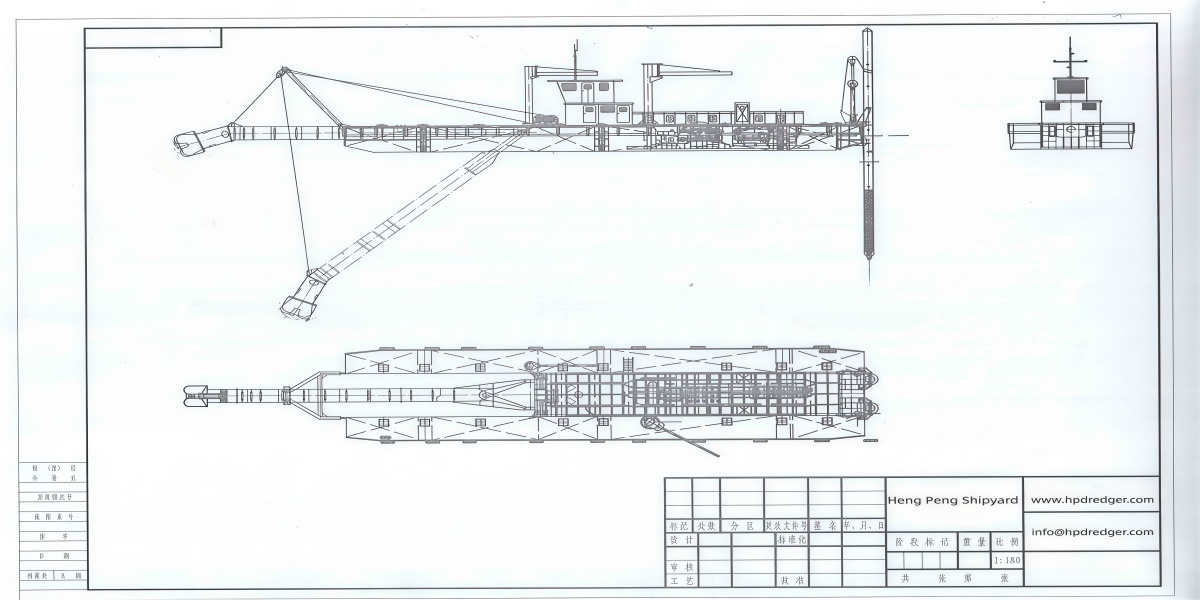

The HP-CSD6014 Cutter Suction Dredger of steel construction, the non self-propelled, dismountable type, is able to berth and dredge at any waters both in the coastal area and inland rivers, with similar conditions to that in navigation area "A" or below the "A"-line specified in code for inland river steel engineering ship manufacture of P. R. China.

The hull is of all welded, steel construction to give the dredger the necessary strength required for dredging operations. The side pontoons are connected to the main pontoon by means of bolts. The hull steel plate used is CCS (shipbuilding steel plate ).

Main Parameter information：

* Flow capacity: 5000m3/h

* Discharge distance: 2000m（Customized optional）

* Max dredging depth: 14.5m （Customized optional）

* Discharge Diameter: 550 mm

* Cummins Diesel Engine : 1342 kw Cummins/Weichai

* Customized Design is Available

SPECIFICATION

Main Advantage:

*High Quality: Manufactured using CCS marine steel and advanced technology.

*Reliable Performance: Equipped with a new highly effective drive system and reliable electrical components.

*Customization: Ability to tailor the dredger to specific needs and working conditions.

*Fast Delivery: Standard designs, allowing short delivery times

*Comprehensive Support: Lifetime technical support, maintenance, and training services.

Packaging & Shipping：

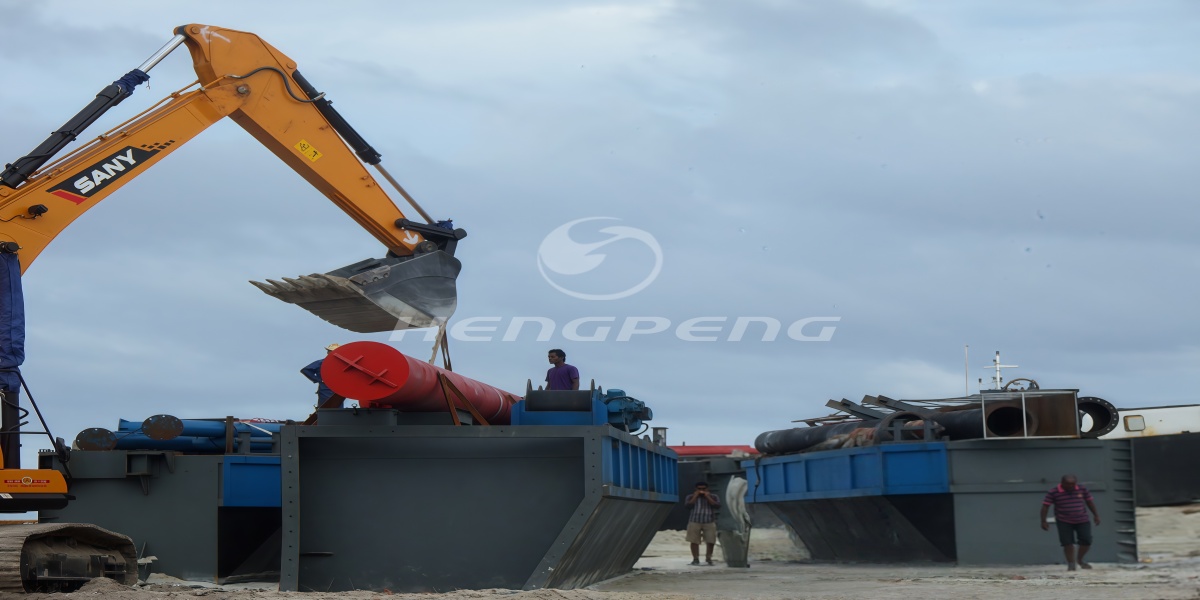

* Smaller size dredger will be transported by container, the dredger is split, each part can be lifted into containers in the warehouse, after the all cargoes be pick uped to working site, and our engineers will go to job site to assembly, testing and training.

* Bigger size dredger will be transported by bulk cargo ship in sea, after the all cargoes be pick uped to working site, and our engineers will go to job site to assembly, testing and training.

The 5000m3/h dredger is belong to bigger size dredger, which could been transported by bulk sea shipment , after the all cargoes be pick uped to working site, and our engineers will go to job site to assembly, testing and training.

HengPeng Shipyard is a pioneering enterprise in the design, construction, and engineering of dredging industries.

HengPeng Shipyard offers an unparalleled range of both standardized and tailor-made dredging, working, and support vessels. HengPeng takes pride in continually upgrading our solutions by collaborating with premier domestic and international institutes, incorporating cutting-edge technologies from Germany, Holland, Australia, and Japan. HengPeng's unmatched products have made a significant impact globally in countries such as UAE, Saudi Arabia, Qatar, Egypt, Spain, Poland, Maldives, Bangladesh, Malaysia, Indonesia, Philippines, and Nigeria, earning high praise and appreciation from our esteemed customers. ---Respond to rapid delivery in various regions.

Welcome to HengPeng Shipyard ! we are looking forward to providing free consultation for your dredging projects, customize the dredge just for you, manufacture, delivery, assembly, train, operate, and provide lifetime technical assistance to achieve your dredging goal !

FAQ

1.Why HP is your Best Trustworthy Dredger Manufacturer? HP company in total covers an area of nearly 100,000 square meters. We have in total of 6 large manufacturing workshops and over 100 dredger designers, engineers, and manufacturers to enable large production and efficient productivity. Also, our in-house Product Testing Pool is 1200 Square Meters to ensure zero defects before shipping out of the factory. For the past 30 years, we have in total manufactured and supplied over ... More
